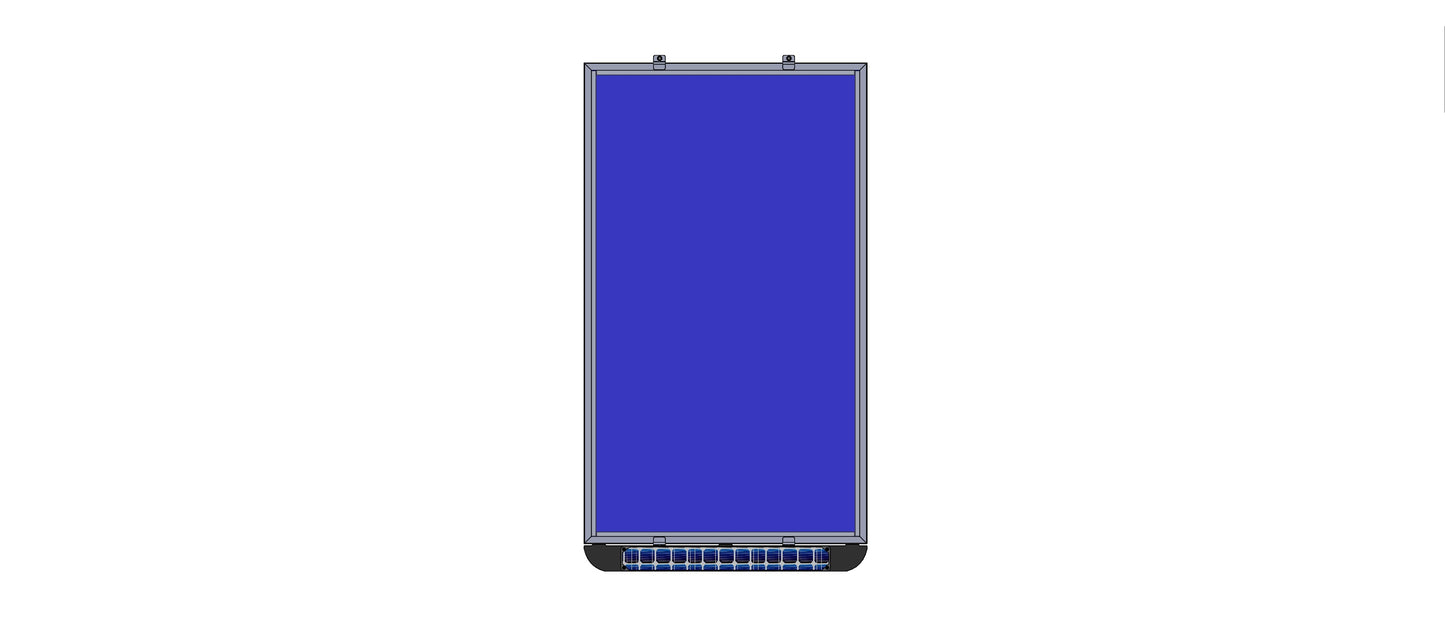

1500 Series Solar Air Heater

Product Description

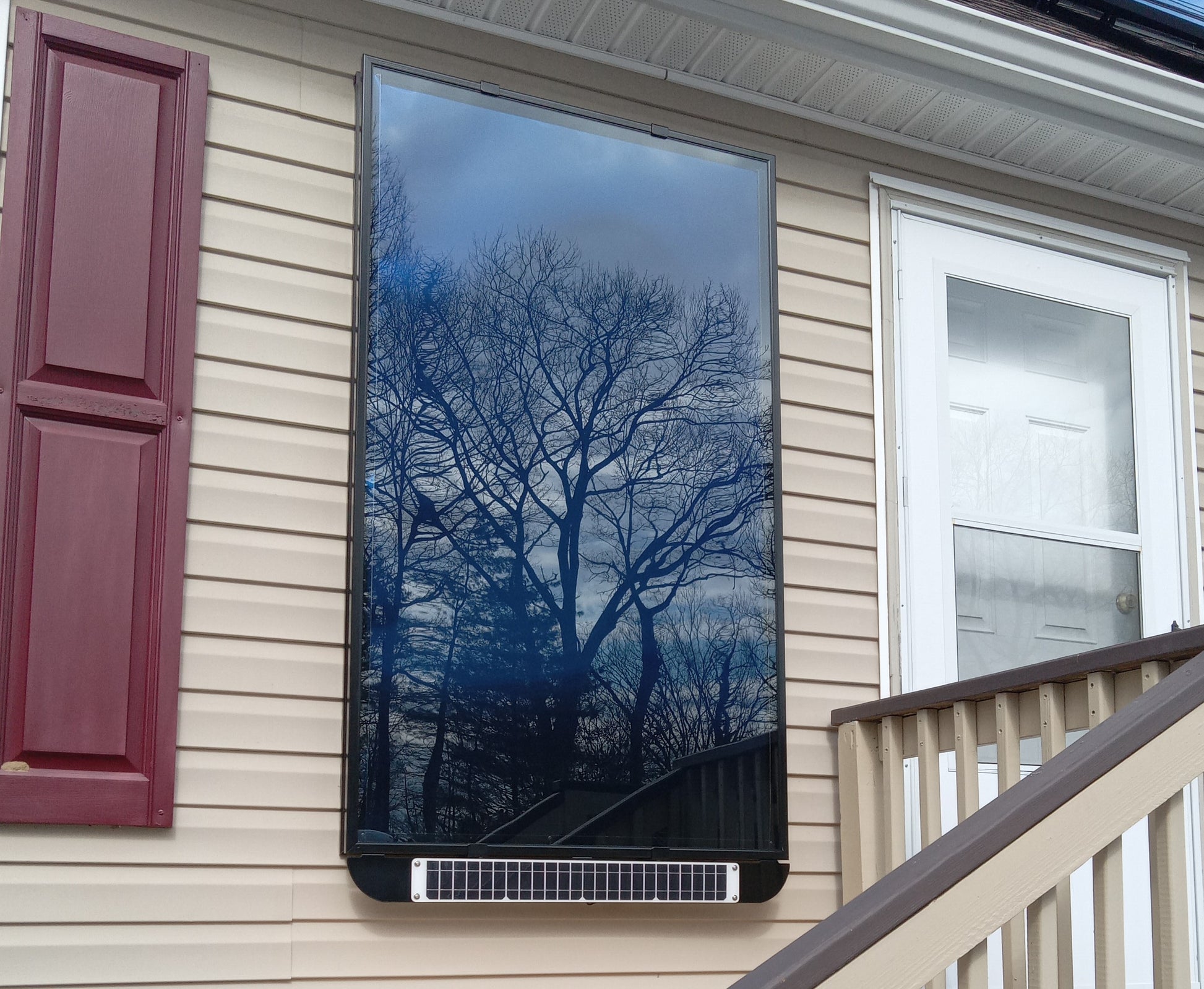

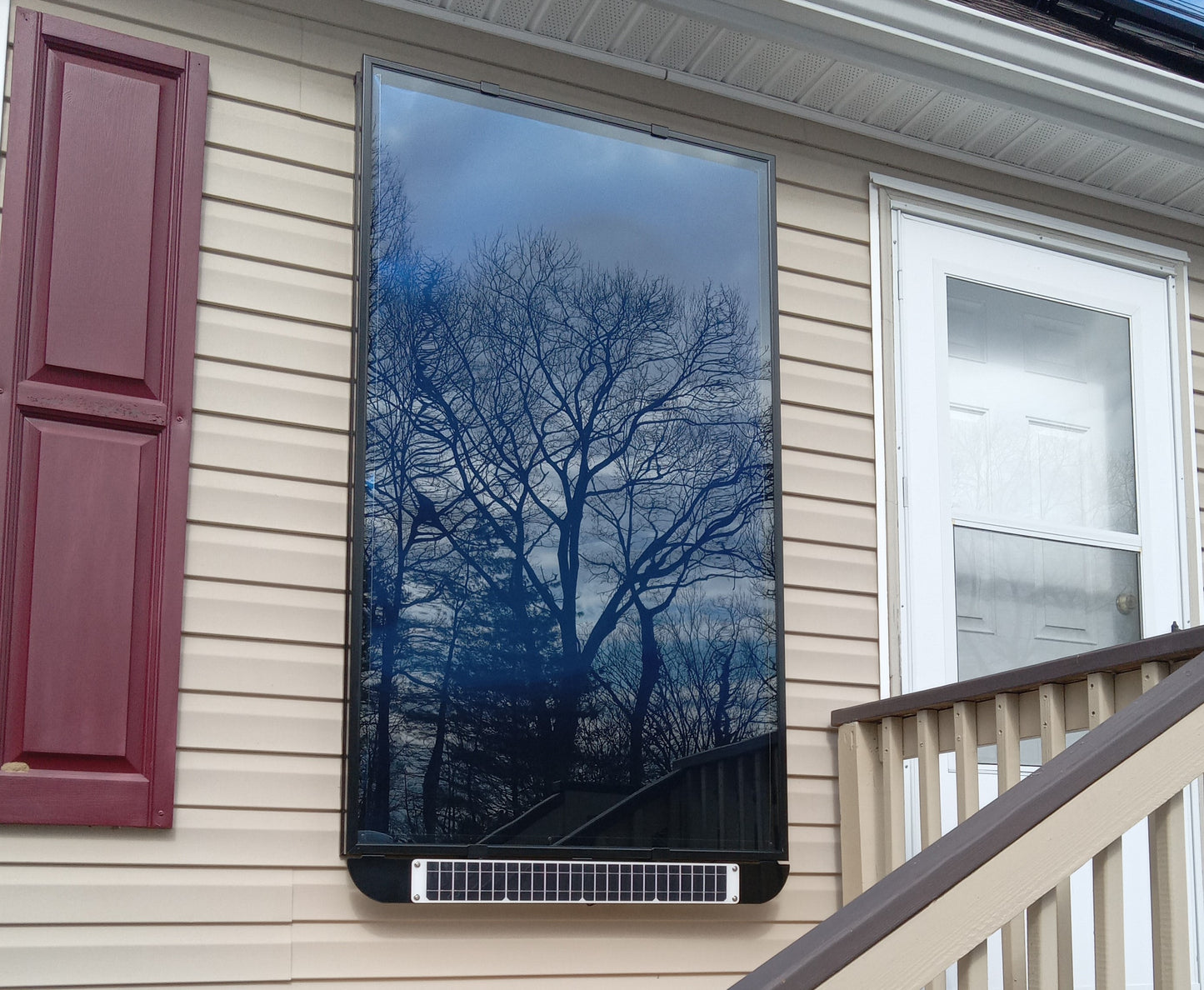

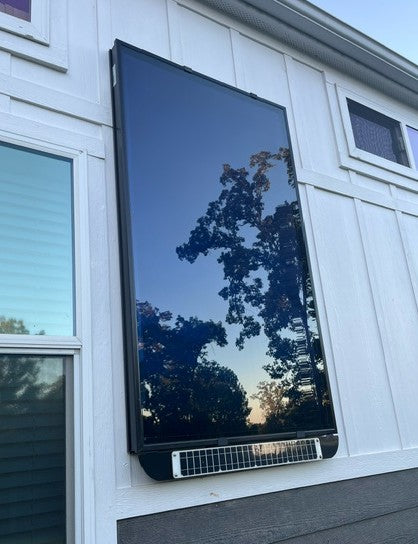

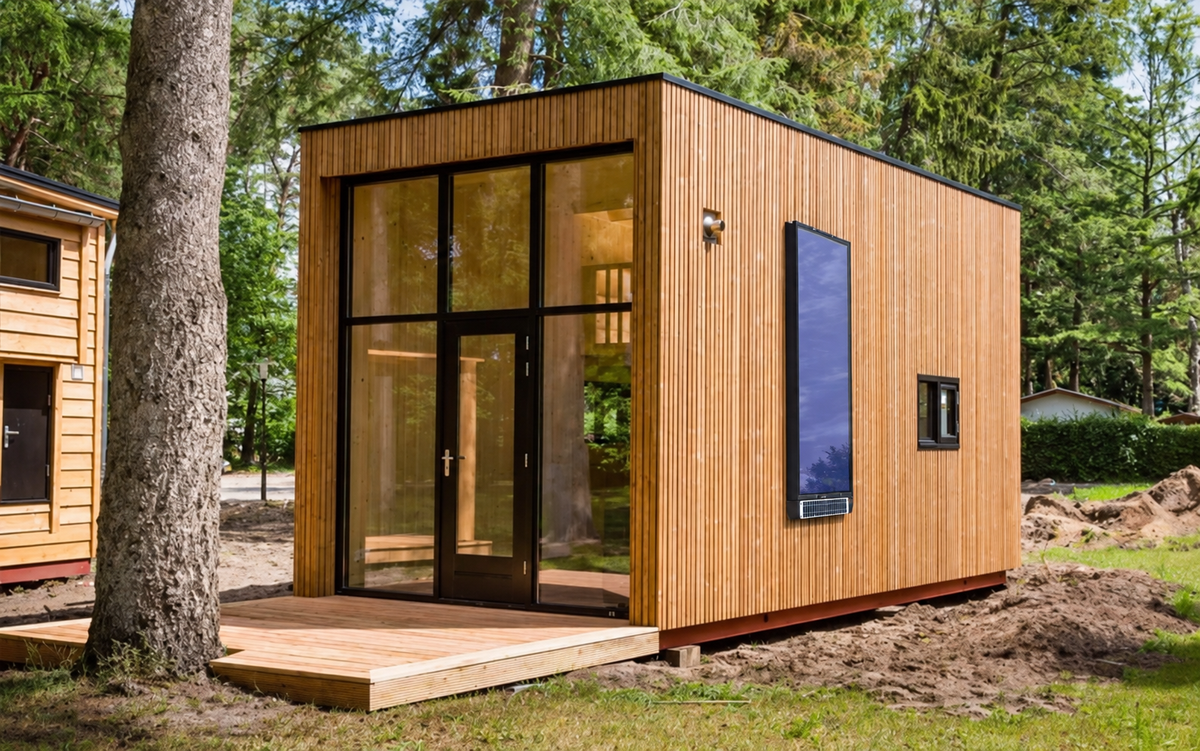

The 1500 Series heater is a stand alone solar air heater. With the PV Fan Kit, a mounted PV panel powers the air circulation fan which is controlled by a simple thermostat. The heater mounts against a south facing wall or wall framing. 4" ducting is routed into the living space.  The heater can be mounted landscape or portrait.  All 1500 sales now ship with our upgraded, more aestectic long form 10W solar panel.

Product Details

• 1,500 W (5,000 BTUh max) heating capacity
• 200 - 250 sqft room rated size
• High performance absorber and patented circulation design

• PV Fan Thermostat Kit Option Details: Heat only thermostat, thermal switch, long form 10W PV panel and DC blower fan.  Select as an option on this page or add separately to your shopping cart at checkout.
• $0.60 / W equipment cost

• No assembly necessary, ready to mount
• Designed for DIY or handyman installation similar to a dryer vent. Up to 0.25" diameter mounting screws, 4" ducting, 4" dryer vent diffuser and covers not included. Can be purchased separately at any Home Depot or Lowes.
• Product Datasheet (PDF) - currently in Gen 3
• Owner and Install Manual (PDF)

In stock.

Domestic single unit orders ship freight in a dedicated crate, measuring 70" x 42" x 9", 163 lbs.  PV Fan Kits ship attached to the top of the crate, measuring 18" x 8" x 4", 4.3 lbs.

International single unit orders ship DHL in a dedicated crate measuring 70" x 42" x 6", 139 lbs.  PV Fan Kits ship in a separate box measuring 18" x 8" x 4", 4.3 lbs.
